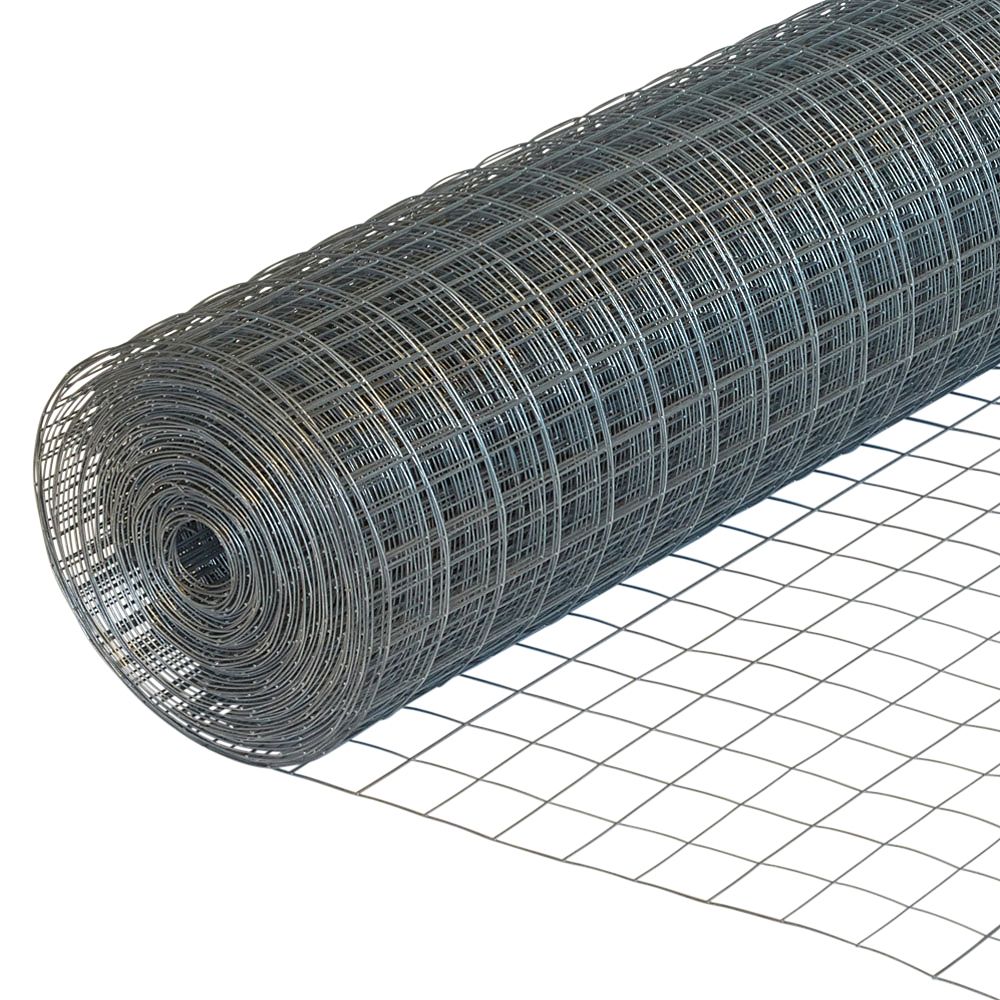

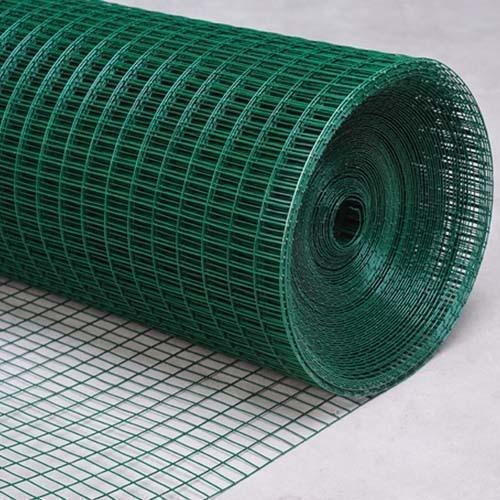

Welded wire mesh rolls are a flexible and highly adaptable solution employed in various construction and industrial settings. Consisting of intersecting wires welded at regular intervals, these rolls form a durable grid pattern that provides structural stability and versatility. Typically manufactured from galvanized steel, these meshes offer resistance against corrosion, making them suitable for both indoor and outdoor applications. The ability to be easily cut and shaped to specific requirements makes welded wire mesh rolls invaluable for projects such as fencing, landscaping, and concrete reinforcement. Their robust construction ensures longevity and strength, while the roll format allows for convenient transport and handling. Whether used for enclosing spaces, reinforcing structures, or creating custom solutions, welded wire mesh rolls offer a reliable and cost-effective material for a wide range of applications in the construction and industrial sectors.
Mesh Hole Size in Inch. | 2”x2” | |||
---|---|---|---|---|
Roll Length in Meters | 12.5" | |||
Roll Height in Meters | 0.9M | 1.2M | 1.5M | 1.8M |
Wire Thickness in Gauge | 12G, 14G | 12G, 14G | 12G, 14G | 12G, 14G |
Mesh Hole Size in Inch. | 2”x2” | ||||
---|---|---|---|---|---|
Roll Length in Meters | 25M | ||||
Roll Height in Meters | 0.9M | 1.2M | 1.5M | 1.8M | 2.4M |
Wire Thickness in Gauge | 10G, 12G, 14G | 10G, 12G, 14G | 12G, 14G | 10G, 12G, 14G | 12G |
Mesh Hole Size in Inch. | 2”x2” | 2”x2” | 2”x2” | 2”x2” | 2”x2” |
---|---|---|---|---|---|
Roll Length in Meters | 25M | 12.5M, 25M | 12.5M, 25M | 12.5M, 25M | 12.5M, 25M |
Roll Height in Meters | 0.6M | 0.9M | 1.2M | 1.5M | 1.8M |
Wire Thickness in Gauge | 2.8/2.3mm | 2.8/2.3mm, 3.25/2.8mm | 2.8/2.3mm, 3.25/2.8mm | 2.8/2.3mm |
Mesh Hole Size in Inch. | 2”x2” | 2”x2” | 2”x2” | 2”x2” |
---|---|---|---|---|
Roll Length in Meters | 25M | 25M | 25M | 25M |
Roll Height in Meters | 0.9M | 1.2M | 1.5M | 1.8M |
Wire Thickness in Gauge | 3.0/2.5mm | 3.0/2.5mm | 3.0/2.5mm | 3.0/2.5mm |
Mesh Hole Size in Inch. | 1/4”x1/4” | ||
---|---|---|---|
Roll Length in Meters | 10M 30M | 6M, 10M, 30M | 10M 30M |
Roll Height in Meters | 0.6M | 0.9M | 1.2M |
Wire Thickness in Gauge | 22G | 22G | 22G |
Mesh Hole Size in Inch. | ½ ”x ½ ” | 1”x ½” | 1”x1” |
---|---|---|---|
Roll Length in Meters | 30M | 30M | 30M |
Roll Height in Meters | 0.9M | 0.9M | 0.9M |
Wire Thickness in Gauge | 20G | 20G | 20G |
Mesh Hole Size in Inch. | ½ ”x ½ ” | 1”x ½” | 1”x1” | ½ ”x ½ ” | 1”x1” |
---|---|---|---|---|---|
Roll Length in Meters | 6M, 10M, 30M | 6M, 10M, 30M | 6M, 10M, 30M | 6M, 10M, 30M | 6M, 10M, 30M |
Roll Height in Meters | 0.9M | 0.9M | 0.9M | 1.2M | 1.2M |
Wire Thickness in Gauge | 19G | 19G | 19G | 19G | 19G |
Mesh Hole Size in Inch. | 1”x1” | 2”x2” | ½ ”x ½ ” | 1”x 1” | 2”x2” | ½ ”x ½” | 1”x1” | 2”x2” |
---|---|---|---|---|---|---|---|---|
Roll Length in Meters | 10M, 30M | 10M, 30M | 6M, 30M | 6M, 10M, 30M | 6M, 10M, 30M | 6M, 30M | 6M, 10M, 30M | 6M, 10M, 30M |
Roll Height in Meters | 0.6M | 0.6M | 0.9M | 0.9M | 0.9M | 1.2M | 1.2M | 1.2M |
Wire Thickness in Gauge | 16G | 16G | 16G | 16G | 16G | 16G | 16G | 16G |
Mesh Hole Size in Inch. | 1/2”x1/2” | 1”x1/2” | 1”x1” |
---|---|---|---|
Roll Length in Meters | 6M | 6M | 6M , 30M |
Roll Height in Meters | 0.9M | 0.9M | 0.9M |
Wire Thickness in Gauge | 17/19G | 17/19G | 17/19G |
